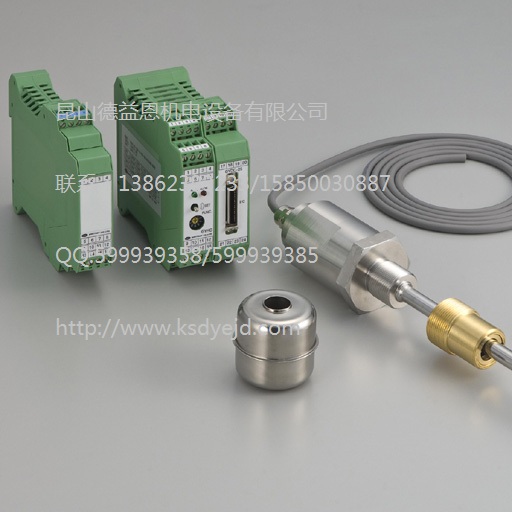

日本SANTEST傳感器、SANTEST位移傳感器、SANTEST變位傳感器、 SANTEST位置檢出器、SANTEST定位傳感器、SANTEST反饋傳感器、 SANTEST液位計等全系列產品。 日本STC SANTEST公司有50多年的傳感器生產歷史,目前生產傳感器有模擬輸出型和數字輸出型. 主要用于: 1.適用于所有傳統的絕對方式變位傳感器所使用的機器: 2.作為自動控制裝置的位置反饋傳感器使用. 3.作為機器人的機械手臂定位傳感器使用: 4.多個近接傳感器的替換: 5.木工機器,銅板的寬度測定,裁紙機,建材的測長,壓力機的定位: 6.作為可內置的油壓,空壓汽缸內的變位傳感器使用: 7.作為所有液體的高精度液位計使用. 產品系列有：SANTEST傳感器 SANTEST控制器 SANTEST探針，SANTEST探頭 1. 高性能模式：GYcRP GYcRP GYcRS GYMR5 2. 小外罩系列：GYMT GYPM GYMS GYGS 3. 高溫型模式：GYcRP-H GYHR 4. 多功能型式：GYcAT GYLT/GYLS GYLT-T/GYLS-T GYAF 5. 線性傳感器：GYKM GYKM-LT/LS 6. 防爆功能器：IGY3 EX-GYdS EX-GYdT 7. 防水功能型：GYC**-****-**2G** IP-** 8. 高精度型，特殊型等等。。。 常用型號有：GYKM-LT-100-BD-RS GYKM-LT-200-BD-RS GYKM-LT-300-BD-RS GYKM-LT-400-BD-RS GYKM-LT-500-BD-RS GYKM-LT-100-BD-RL GYKM-LT-200-BD-RL GYKM-LT-300-BD-RL GYKM-LT-400-BD-RL GYKM-LT-500-BD-RL GYcAT-1300-7SGNil GYcAT-1400-7SGNil GYcAT-1500-7SGNil GYcAT-1700-7SGNil GYcAT-1800-7SGNil GYcRS-1300-7SGNil GYcRS-1400-7SGNil GYcRS-1500-7SGNil GYcRS-1700-7SGNil GYcRS-1800-7SGNil GYcRS-1300-7SGG GYcRS-1400-7SGG GYcRS-1500-7SGG GYcRS-1700-7SGG GYcRS-1800-7SGG GYKM-600-NL-T GYKM-700-NL-T GYKM-800-NL-T GYKM-900-NL-T GYKM-1000-NL-T GYKM-600-NL-U GYKM-700-NL-U GYKM-800-NL-U GYKM-900-NL-U GYKM-1000-NL-U GYCAT-1500-CD-N、 GYCAT-1700-BR-M、GYCAT-670-BR-M-G、GYCAT-345-BR-M、GYCAT-1000-BR-M、GYCAT-2060-BR-M、GYCAT-4-600-BD-M-M0、GYLS-50-AD-M-220、GYLS-150-D-M-S、GYMS-800-N-CN，STC SANTEST閥門定位器：GYCRP-40-HO SERAL 25615P 0Z10，STC SANTEST閥位傳感器： ICY3-P-2C-HM-1-770等產品類型。
|
The GYSE-probe is an all-in-one type sensor with positional resolution up to 1μm. Positon output is Analogue, SSI, or Incremental. Velocity output (option) is avaiable for Analogue type. The positonal difference between 2 magnets can be observable as well. This allows quick and easy sensor cartrige replacement. Sensor parameters (zero, full-scale or range) can be adjusted by using the Windows programming software (ISO9141). |
Specifications
| Non-linearity | < ±0.025%FS (Min.±50μm) |
|---|---|
| Resolution | 16bit (1/65536) |
| Repeatability | ±0.001%FS (Min.±3μm) |
| Temp drift | ±20ppmFS/°C |
| Output | Analogue |
| Position output (Standard) |
0-10V (output current:Max.5mA, load:Min.2kΩ) Or 4-20mA (load:Min.500Ω) |
| Velocity output (Option) | ±10V or 4-20mA / Resolution:16bit (1/65536) |
| Alarm output | Open drain 50V 0.1A (Alarm signal for lost magnet) |
| Power supply | +24 (±2) VDC (80mA) |
| Frequency response | Std 1kHz (depending on stroke) sampling |
| Admissible press. | 35MPa (probe rod) |
| Operating Temp | -20°C-+80°C |
| Storage Temp | -40°C-+80°C |
| Vibration | 15G (10-2000Hz) |
| Shock | 100G (2msec) |
| Protection | IP67 (Connecting mount or Pigtail type) |
The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
Model No.
(1):Effective stroke
15mm-5200mm
(2):Thread
M:M24xP1.0 (Standard)
N:M18xP1.5
U:3/4-16UNF-3A
(3):Sensor rod diameter
blank:Φ10 (Standard)
8:Φ8
14Φ13.8
(4)Cable connection
CN:Connector (Standard)
G*:Pigtail type
(*:Cable length [m], Standard:1.5m)
For CN type, only counter connector supplied.
In case extra cable needed, specify the length.
(5):Analogue position output (OUT1)
| AD | 0-10V (Standard) |
| AR | 10-0V |
| BD | 4-20mA |
| BR | 20-4mA |
|
CD or CR□□ bipolar output [ex] CD10 CR05 |
□□V-□□V -10V-+10V +5V--5V |
|
V Z/F [ex] V1/5 V9.5/0.5 |
Custom order 1-5V 9.5-0.5V |
|
I Z/F [ex] I5.12/20 I20/5.38 |
Custom order 5.12-20mA 20-5.38mA |
*F=Full scale position
(6):Option:Analogue output (OUT2)
Position:see (5)
Velocity output (Note)
VA[ ] ±10V
WB[ ] 4-20mA
[ ]:max velocity (1.00-999mm/sec)
(ex.9R99:max velocity＝9.99mm/sec)
N:No option
(Note)
VA:when magnet stops, output is 0V. when moving toward probe tip, +10V
WB:when magnet stops, output is 4mA. when moving in any direction, 20mA.
Dimensions
|
|
|
|
Material probe head:Al diecast, probe rod:SS304
Standard magnet:No.2Y.
Other magnets are available from Magnet Grouping [GG].
The tip dead zone length (70mm) depends on the magnet or float type.
Connector:LEMO connector (Material:brass with Ni plating)
(Standard:straight type, Option:L type)
|
GYcRS and GYcRP probe uses RS-422 differential line drivers signal transmission of which advantage is the noise free transmission with a simple interface. In combination with GYDC-05 controller, GYcRS probe has achieved high resolution of 1μｍ. GYcRP probe is available for high temperature ambient (200°C) and SRT (Shock Resistant Technology) options. |
Specifications
| Non-linearity | < ±0.025%FS TYP |
|---|---|
| Resolution (anaoglue) (digital) | 16bit (with GYHC) / Min.1μm (with DC05) |
| Repeatability | < ±0.01%FS |
| Temp drift | < ±20ppmFS/°C |
| Admissible press. | 35MPa (probe rod) |
| Operating Temp | -20°C-+80°C |
| Storage Temp | -40°C-+80°C |
| Vibration | 6G (40Hz2mmPP) |
| Shock | 100G (2msec) |
| Protection | IP65 |
| Cable length | 1.5m (Standard) (Option Max.200m) |
The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
Resolution depends on the controller combined.
Model No.
(1):Effective stroke
15mm-5200mm
(2):Thread
M:M24xP1.0 (Std)
N:M18xP1.5
U:3/4-16UNF
(3):Sensor rod diameter
blank:Φ10 (Standard)
8:Φ8
14:Φ13.8
(4):Cable connection
CN:Connector (Standard)
G*:Pigtail type
(*:Cable length [m], Standard:1.5m)
Combined controller
Analogue output type:GYHC, GYFC2
Digital output type:GYDC-05
With LED Display:GKS-01 (only GYcRS)
Dimensions
|
|
Material probe head:Al diecast, probe rod:SS304
(GYcRP probe) Standard magnet:No.2P Other magnets are available from Magnet Grouping [B].
(GYcRS probe) Standard magnet:No.2PN Other magnets are available from Magnet Grouping [GG].
The tip dead zone length (70mm) depends on the magnet or float type.
Connector:Sanwa SNW-1607-PCF (Material:zinc alloy fluoroplastic)
In case of using probe only,
probe outputs digital signals (start/stop) using RS422 differential
line drivers. In response to user's interrogation (start) pulse, probe
provides stop pulse.
